蒸汽鍋爐

當前位置:首頁 > 產品中心 > 蒸汽鍋爐
蒸汽鍋爐,蒸汽鍋爐廠家鎮江金能鍋爐有限公司

蒸汽鍋爐


生產廠家:鎮江金能鍋爐有限公司


詳細介紹



蒸汽鍋爐





Horizontal fuel oil (gas) steam boiler





產品特點介紹 Features of the product introduction
    1、金能WNS系列燃油(燃氣)蒸汽鍋爐,吸納歐洲“勞氏”與“菲斯曼”臥式濕背三回程火管鍋爐優點的同時,大膽創新而開發的一種高效、型產品。
    2、爐體結構為臥式濕背三回程火管式,波形爐膽,爐膛下置,前后火箱設置可開啟的煙箱門。對稱布置的傳熱管為螺紋管與光管組合,超大傳熱面積使鍋爐熱效率達到90%以上。獨特的汽水分離器使蒸汽品質得到較好的保證(蒸汽干度達到97%以上)。
    3、水位控制系統采用電極式水位控制,設置高、中、低、極低水位保護。控制有多層安全聯鎖保護裝置,如:蒸汽壓力保護、溫度過高保護、燃燒器熄火保護、安全閥保護、密碼保護、防爆門保護等,使鍋爐的安全運行始終處于受控狀態。
    4、鍋爐為整機出廠,選配性能可靠的一次性儀表閥門,燃燒器和給水泵采用進口優質品牌,確保鍋爐的每個環節都是可靠的。按照設計規范設置有爐膛檢查門、頭孔、手孔、觀火孔、防爆門和前后可開啟的煙箱門,方便維護和清理。

        1.The KONA boiler learn from the Lowe's and Fisman's Horizontal wet back three return fire tube boiler, we create a new kind of product.
        2.Furnace body structure is horizontal wet back three return fire tube type, corrugated furnace, furnace, under the fire box set before and after the door is open the smoke. Symmetrical arrangement of the pipe to pipe thread tube and light combination, large heat transfer area of the boiler thermal efficiency can reach above 90%. Unique steam separator make the steam quality assured good (steam quality reached more than 97%).
        3.Water level control system adopts the electrode type water level control, set high, medium, low, low water level protection. Control with multi-layer safety interlock protection device, such as steam pressure protection, temperature protection, burner flame-out protection, safety valve protection, password protection, explosion door protection, etc., make the safe operation of boiler is always under control.
        4.Boiler for the machine factory, equipped with reliable performance of disposable instrument valve, burner and feed water pump USES the import high quality brand, to ensure the boiler's each link is reliable. According to the design specifications set have a stove or furnace inspection door bore, head, hand hole, turn off the heat, before and after explosion door and the door is open the smoke, convenient maintenance and cleaning.



用途介紹 The purpose
產品廣泛應用于化工、造紙、制藥、食品加工、紡織行業、酒店賓館、學校及樓宇空調制熱等行業,提供高品質的蒸汽。

Products are widely used in chemical industry, paper making, pharmacy, food processing, textile industry, hotel, school and building air conditioning, heating and other industries, provides the high quality of steam.

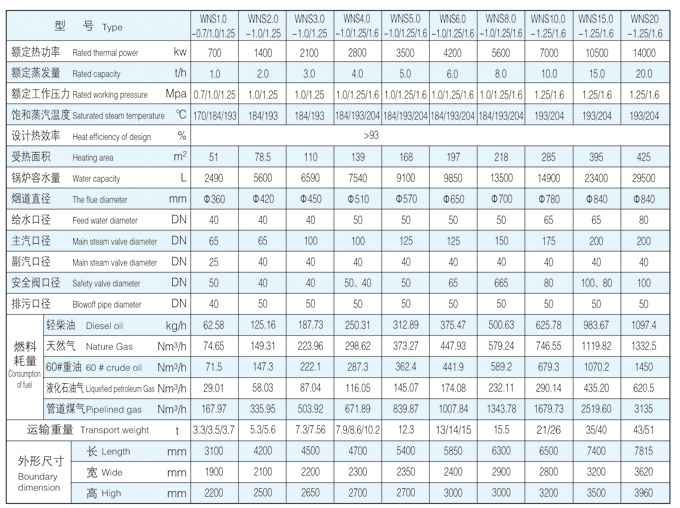

技術參數 Technical information

注:*本公司不斷追求技術創新及產品改進,產品的規格、技術參數及外型如有改動恕不另行通知。

PS: Our company always improve the products, if something is change in a hurry, we can't show it in our catalogue, thanks for your understanding.

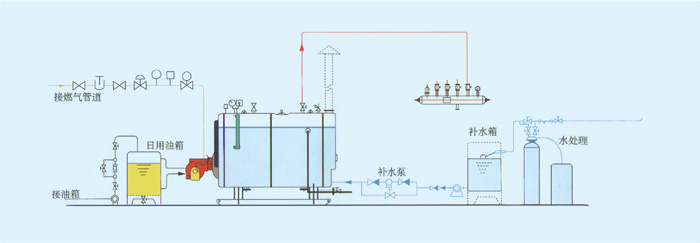

安裝示意圖 Installation Instruction
